Info

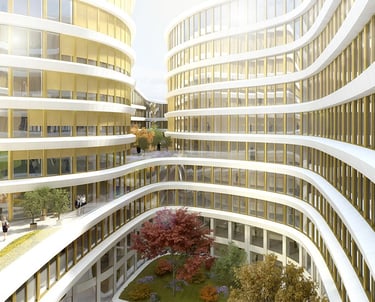

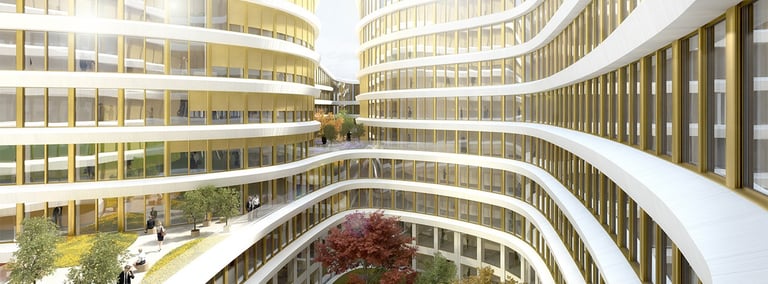

BRUSSELS / BELGIUM

103.500 M2

Scope: FACADE MODELING

Deliverables: Revit Model

Main Challenge

The architectural design was delivered solely as 2D CAD files created using B-splines.

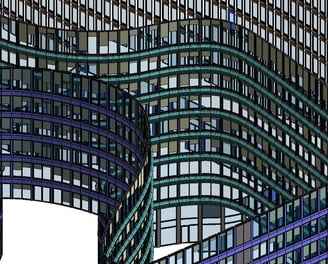

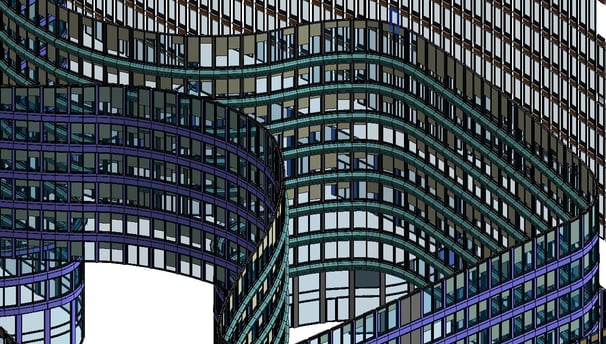

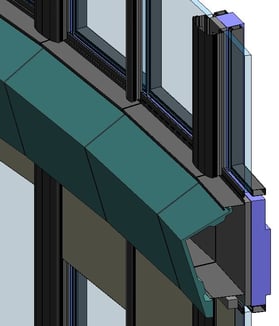

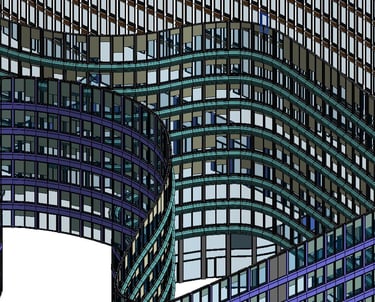

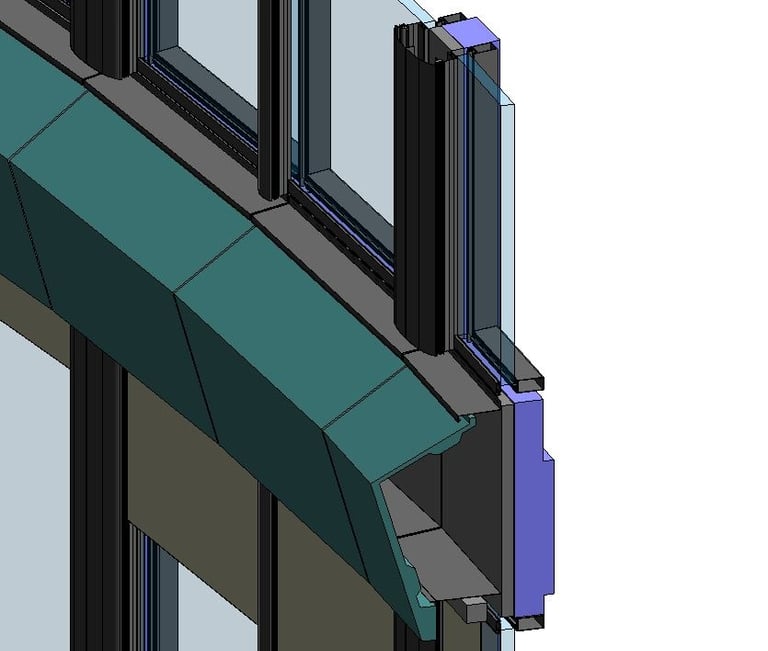

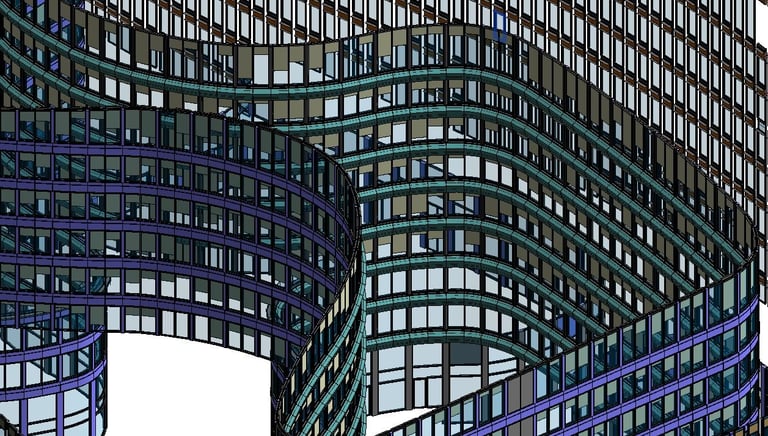

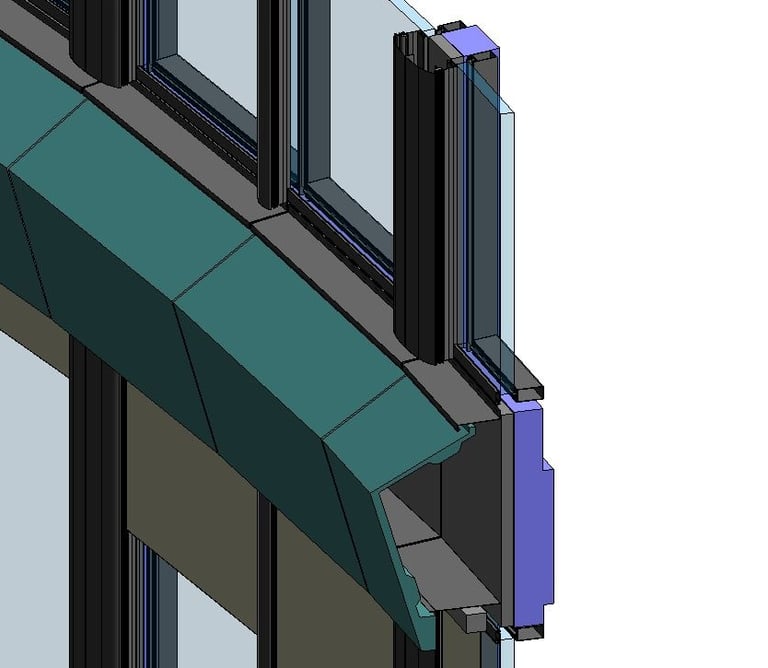

My responsibility was to generate 3D façade elements with precise assembly dimensions, accurately fitting the building's curved surfaces.

Solution

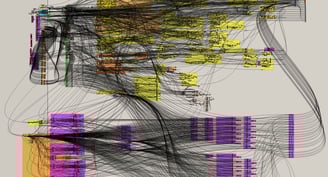

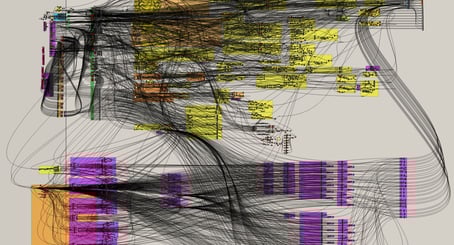

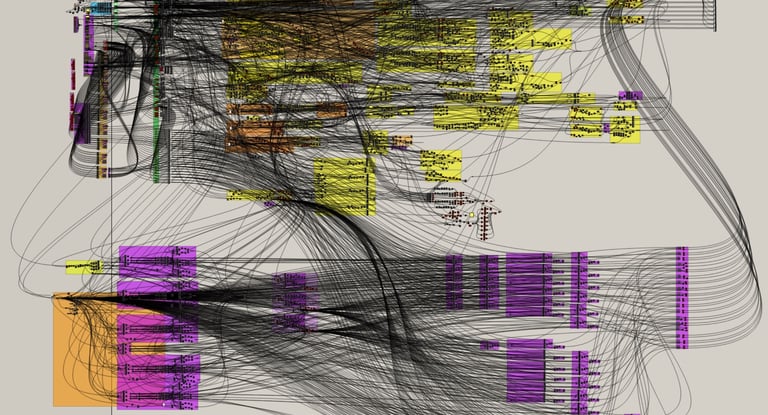

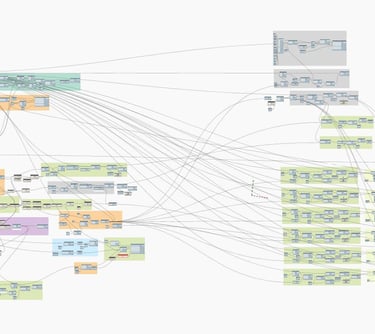

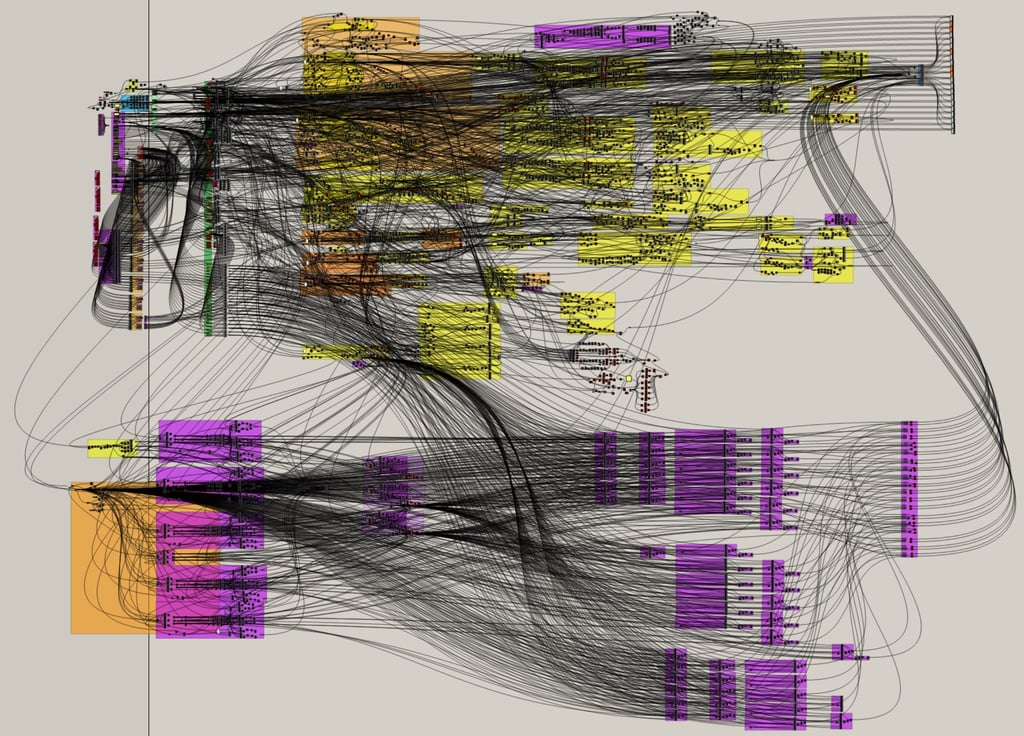

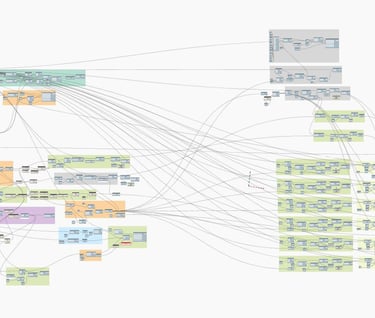

Created parametric workflows with Grasshopper and Dynamo to calculate complex geometries and efficiently generate Revit models.
