Info

ISTANBUL / TURKEY

275.000 M2

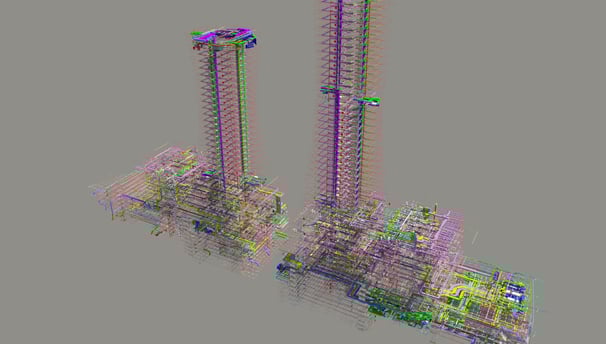

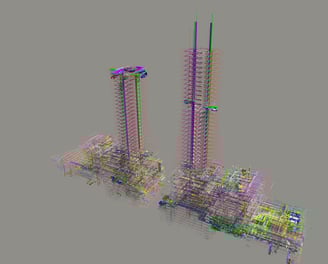

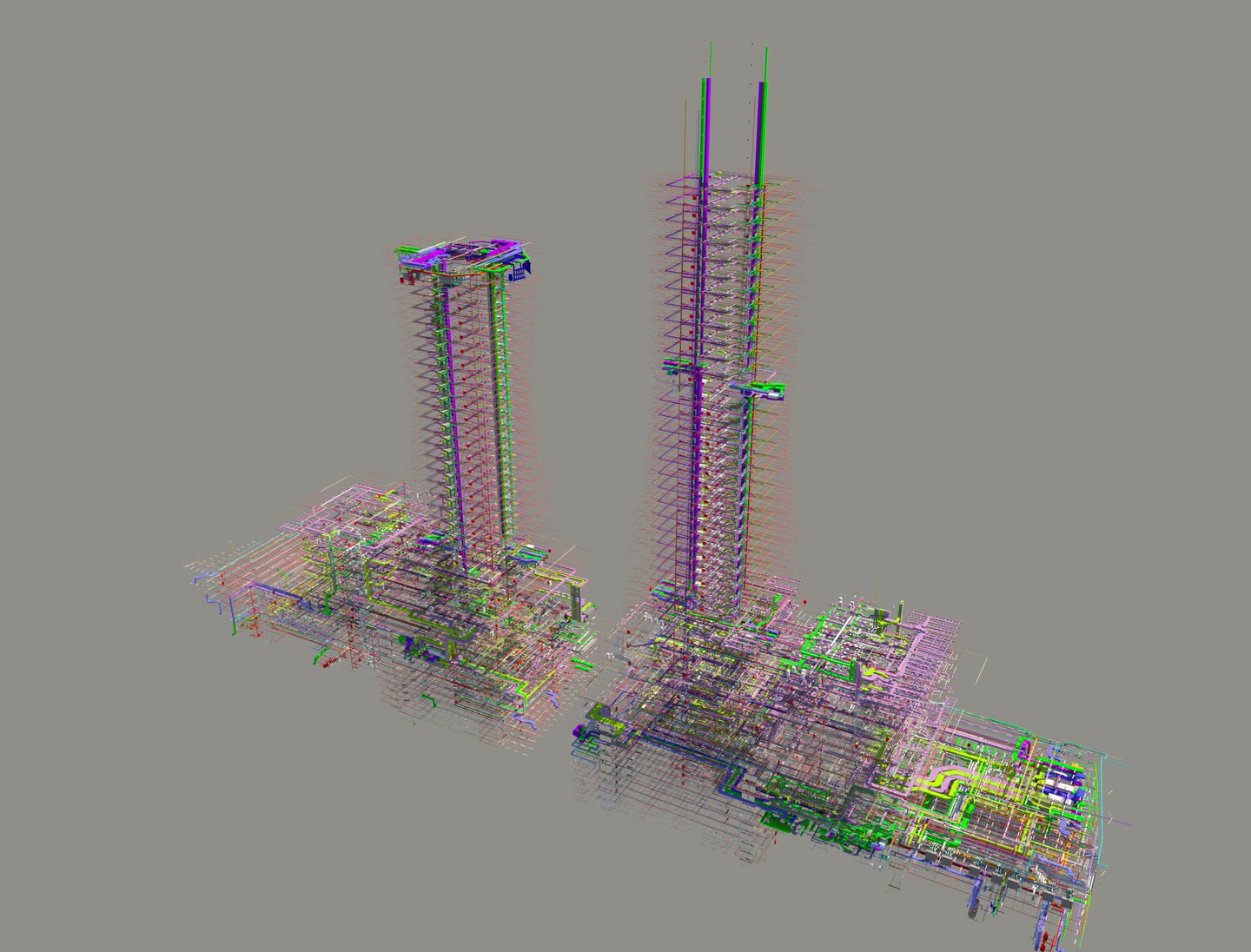

Scope: MEP & FACADE COORDINATION AND MODELING

Deliverables: Revit Models for MEP, Rhinoceros Models and DWG out for Facade

Main Challenge

addıtıonally to coordınatıng complex mep systems, Creating detailed production models for Facade elements, which are all in various angles resulting from the complex geometry of Architectural design.

Solution

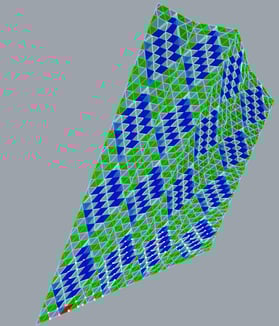

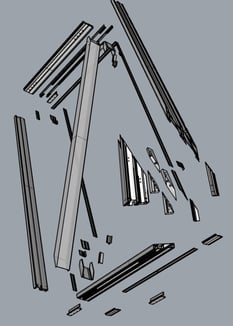

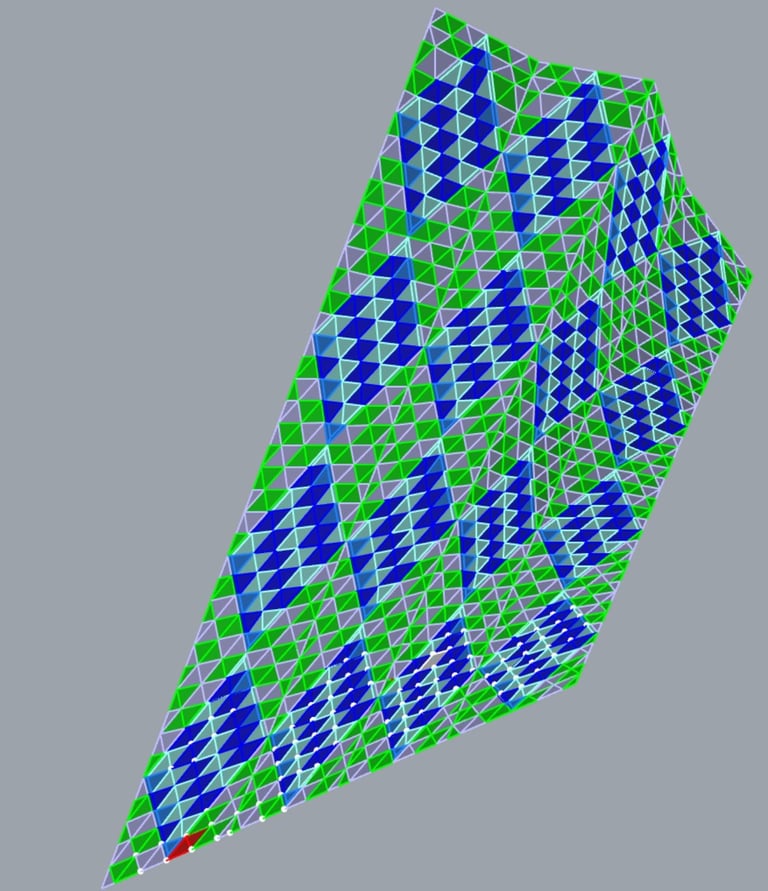

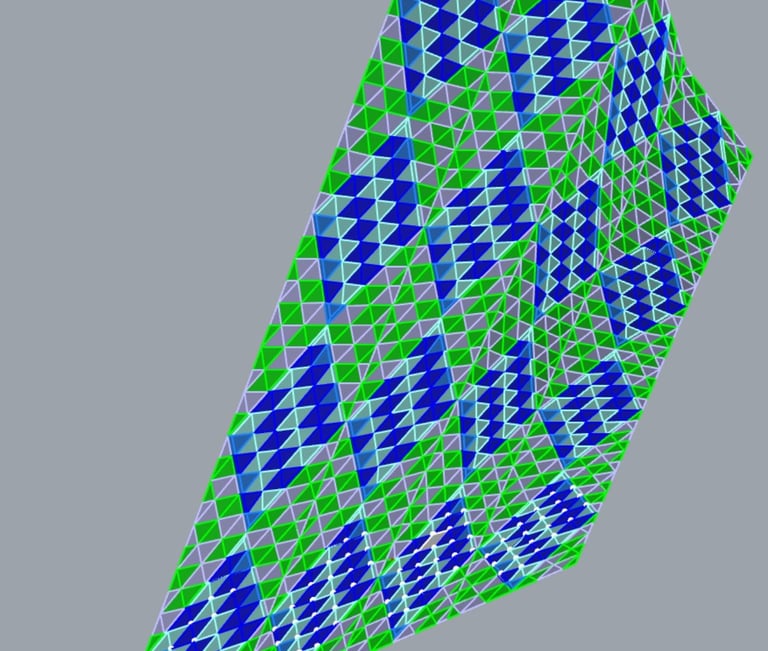

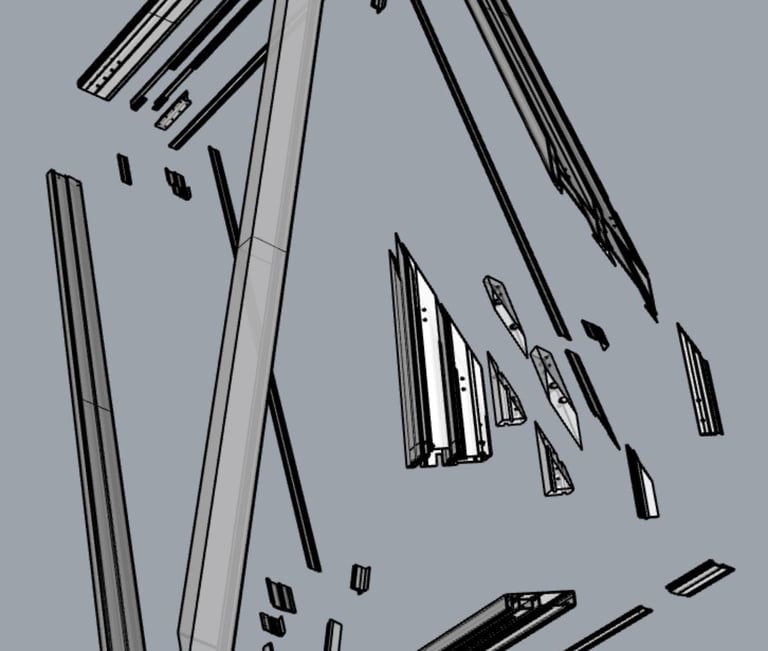

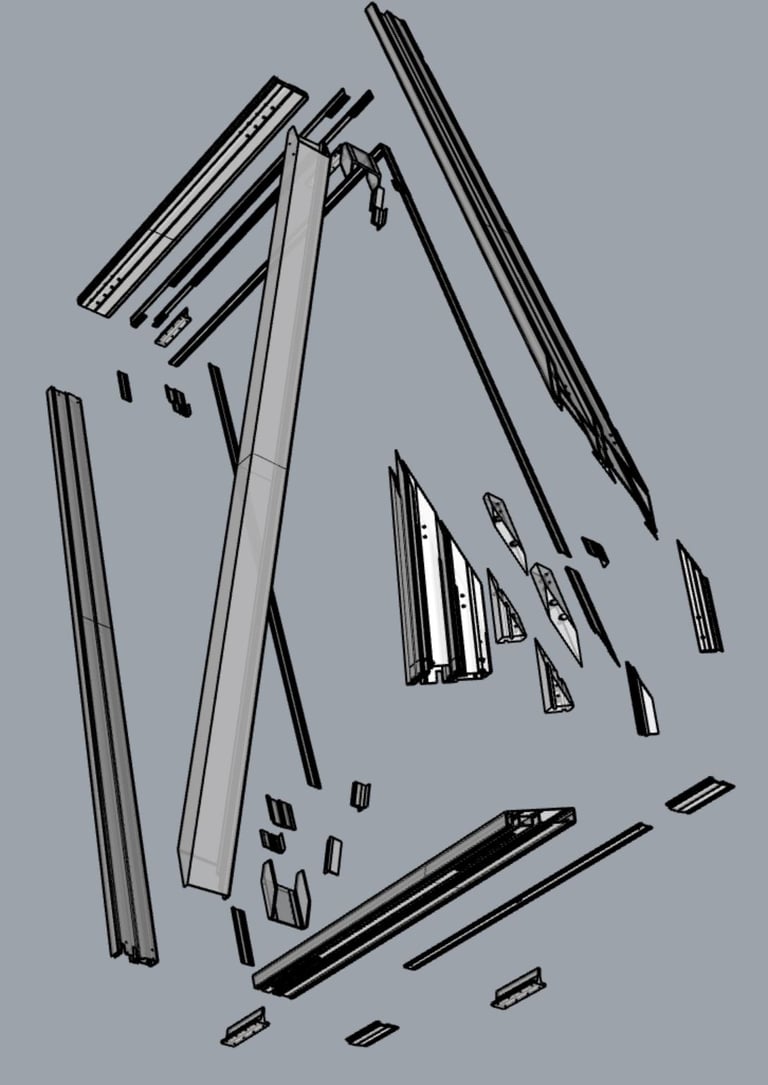

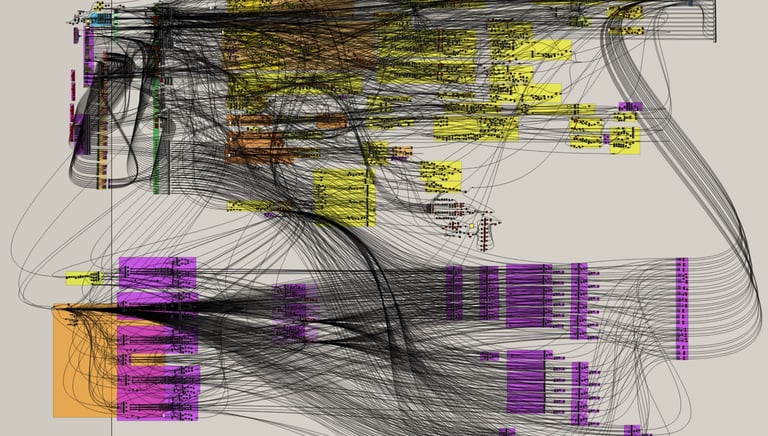

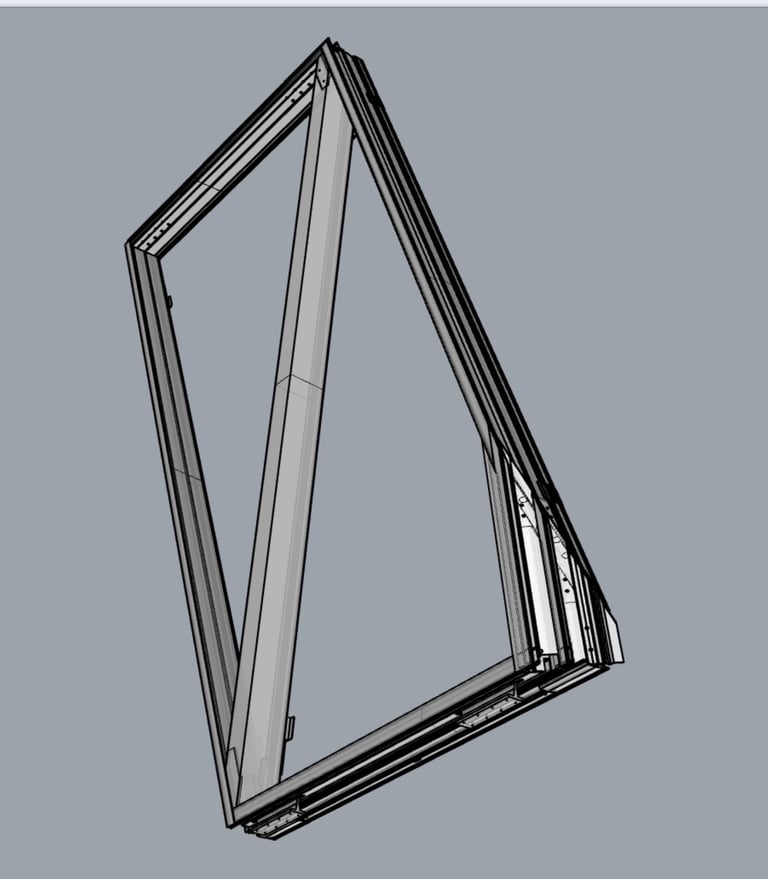

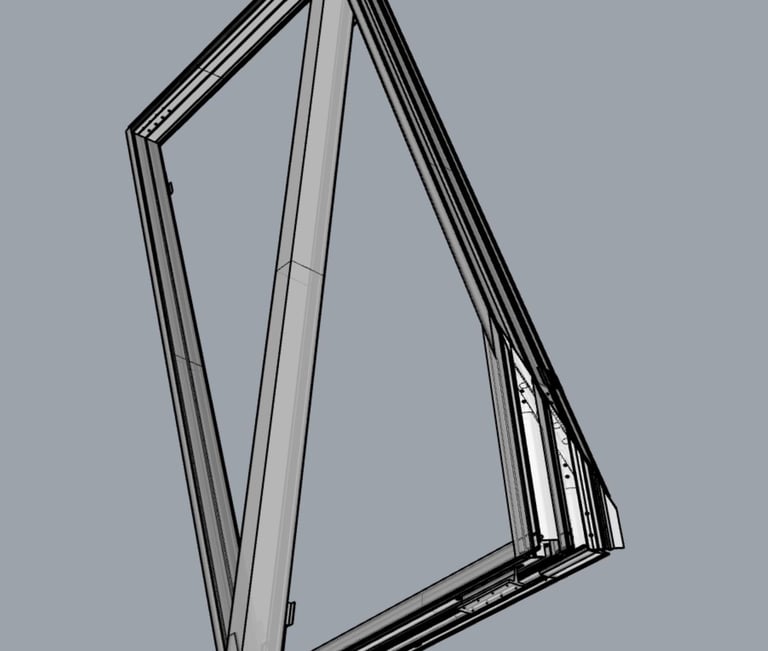

Developed a grasshopper algorithm which automatically generates hıghly detaıled 3d models of Facade elements and connections by selecting the relevant surface from the basic facade model.
